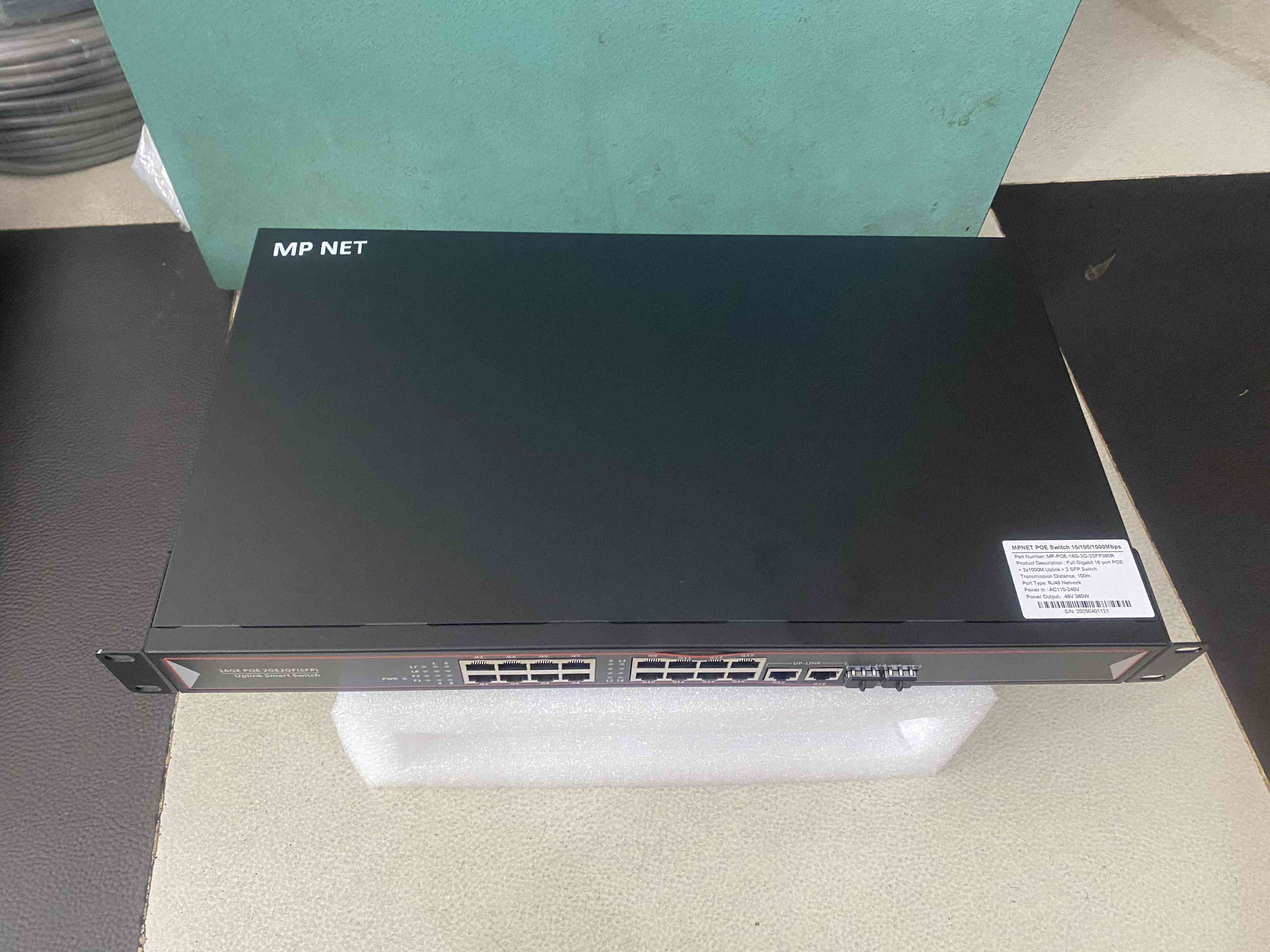

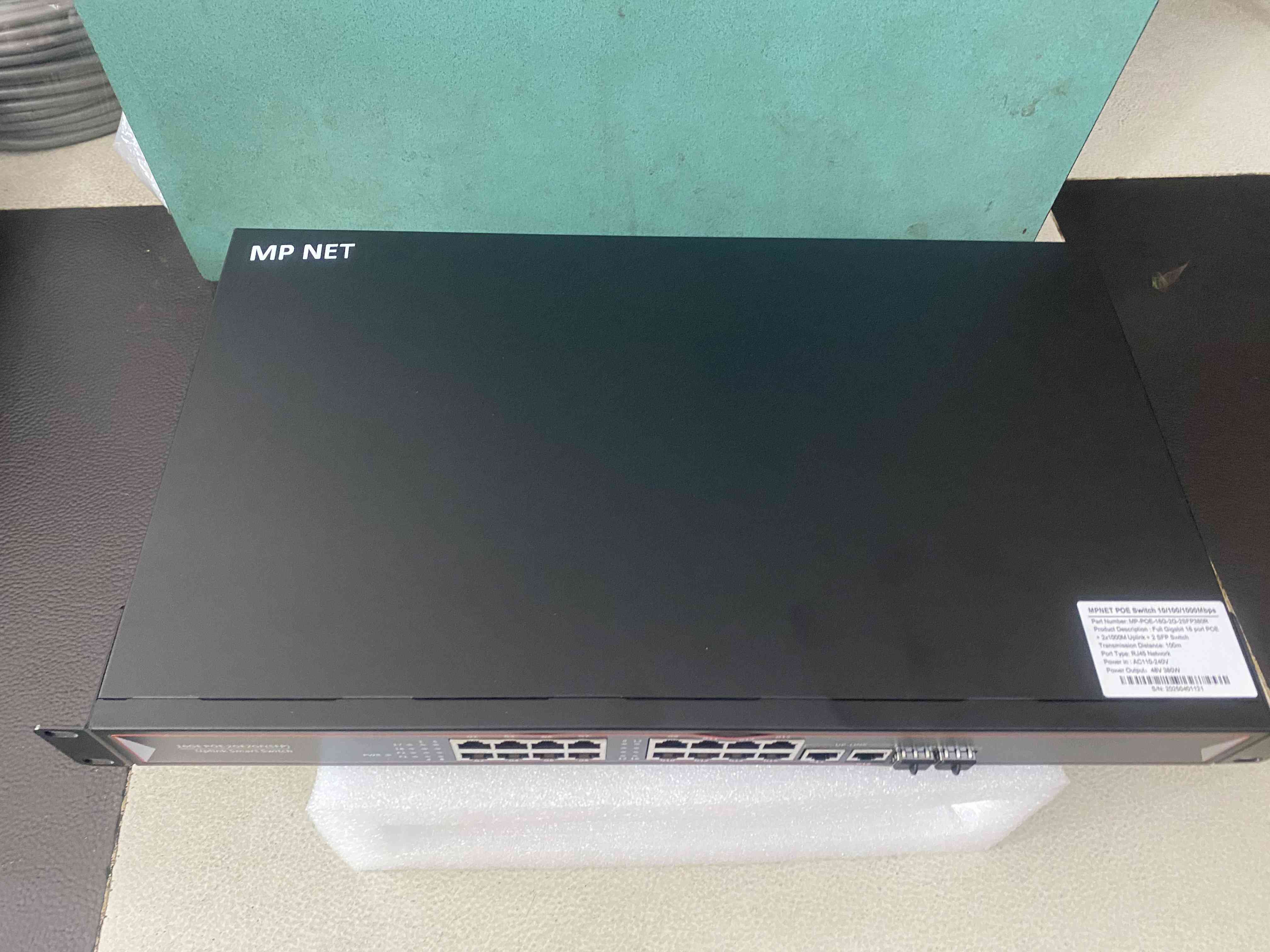

Thiết bị mạng switch 16 cổng POE 1000M +2 port Link 1000M+ 2 SFP MP NET MP-POE-16G-2G-2SFP380R
20-Port Gigabit PoE Switch with 16 PoE Ports and 2 Gigabit Uplink Optical Ports and 2 port SFP.
Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras
Port 1 to Port 16 supports IEEE802.3af power (each port maximum power is 15.4W)
16x 10/100/1000 Mbps ports + 2x gigabit optical uplink ports
Compatible with IEEE 802.3 10i and IEEE 802.3u standard
The packet forwarding speed is 1.488Mbps of one wire-speed port
Port features with auto-flip(Auto MDI/MDIX)
Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV)
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
Standard 1U rack design, suitable for rack installation mode
Automatic adjustment, plug and play, no need software and protocol conversion
Features with QOS, RSETMSTP, IGMP etc. RADIUS authentication, 802.1X authentication and so on
Flexible:
Selecting to insert up to 16 Ethernet networks or fast Ethernet devices or hybrid access to 16 IP-based IEEE802.3af PoE devices. Optimized installation and power management, such as the wireless access points (AP), Voice IP (VoIP) phones and IP-based cameras. Power over Ethernet (IEEE802.3af) is used for new construction equipment to improve network efficiency and reduce the time and cost of installation. Easily deploy your wireless access point AP and IP cameras, eliminating the need to power outlets and supply uninterrupted power to the entire PoE device.
Convenient :
Indicator lights on the front panel make it easier to observe the status of the switch and solve the problems. It’s convenient for management access to web-based browser coming with plug and play features or intelligent installation guide.
Reliable:
This durable switch is a 17 inch metal casing design. There are total matching rack kits in the package box. The switch is compatible with Windows, Macintosh O / S, Linux, Netware and other mainstream operating systems.
Application Situations:
Million HD surveillance transmission and power supply
Wireless AP distribution transmission and power supply
VoIP transmission, intelligent home systems
City intelligent traffic monitoring system (ITS), safe city, and wireless city
Highway surveillance system, electronic road surveillance, snapshot system
large industrial factory& enterprise security surveillance system, network multi-function system
Remote multimedia teaching & campus surveillance, video conferencing systems
Building intercom, wireless communications, video surveillance
Ordering Information:
Product Model: ATD-P1016G-2SFP
Product Description: 20-Port Gigabit PoE Switch with 16 PoE Ports and 2 Gigabit Uplink Optical Ports, port 1 to port 16 supports PoE IEEE 802.3af international standard, each port power is 15.4W
Package Lists:
|
20-Port Gigabit PoE Switch with 16 PoE Ports and 2 Gigabit Uplink Optical Ports (MP-POE-16G-2G-2SFP380R) |
|
AC Input Power Cable |
|
User Guide |
|
Technical parameter list: |
|
|
Product Name |
20-Port Gigabit PoE Switch with 16 PoE Ports and 2 Gigabit Uplink Optical Ports |
|
Model |
MP-POE-16G-2G-2SFP380R |
|
Connector Type |
16x 10/100/1000M copper cable RJ45 PoE ports+2x 10/100/1000M uplink optical ports |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or more UTP(≤100 meters); 1000BASE-TX: Cat5 or more UTP(≤100 meters) |
|
Bandwidth |
52Gbps bandwidth |
|
Address Database Size |
1000 |
|
MTBF |
190,000 hours (about 21 years) |
|
Network Latency |
Less than 20 microsecond |
|
Forwarding Mode |
Packet Length is 10Kb, Packet Buffer is 4.1M, Gigabit wire-speed forwarding |
|
Buffer Memory |
96KB |
|
Network Protocols |
IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI |
|
LED Display |
Power, Network, PoE working status |
|
Power Input |
AC100-240V 50/60Hz |
|
PoE Ports |
Port 1 to port 16 supports IEEE802.3af(15.4W) power |
|
PoE Port Power |
PoE port output power is 15.4W(IEEE802.3af) |
|
Power Consumption |
380W |
|
Working Environment |
Working temperature: -20°C~75°C; Storage temperature: -40°~ 85°C; Working Humidity: 10%~90%, no condensation; Storage Humidity: 5% ~ 90%, no condensation; Working Altitude: 3000 meters (10,000ft); Storage Altitude: 3000 meters (10,000ft) |
|
Power Supply Type |
The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply |
|
Product Size |
Dimension (LxWxH): 440 x 330x 44mm; Weight: 5kg |
|
Package Size |
LxWxH: 585 x 445 x 95mm |
|
Warranty |
1 Year Warranty, Life-time Maintenance |
