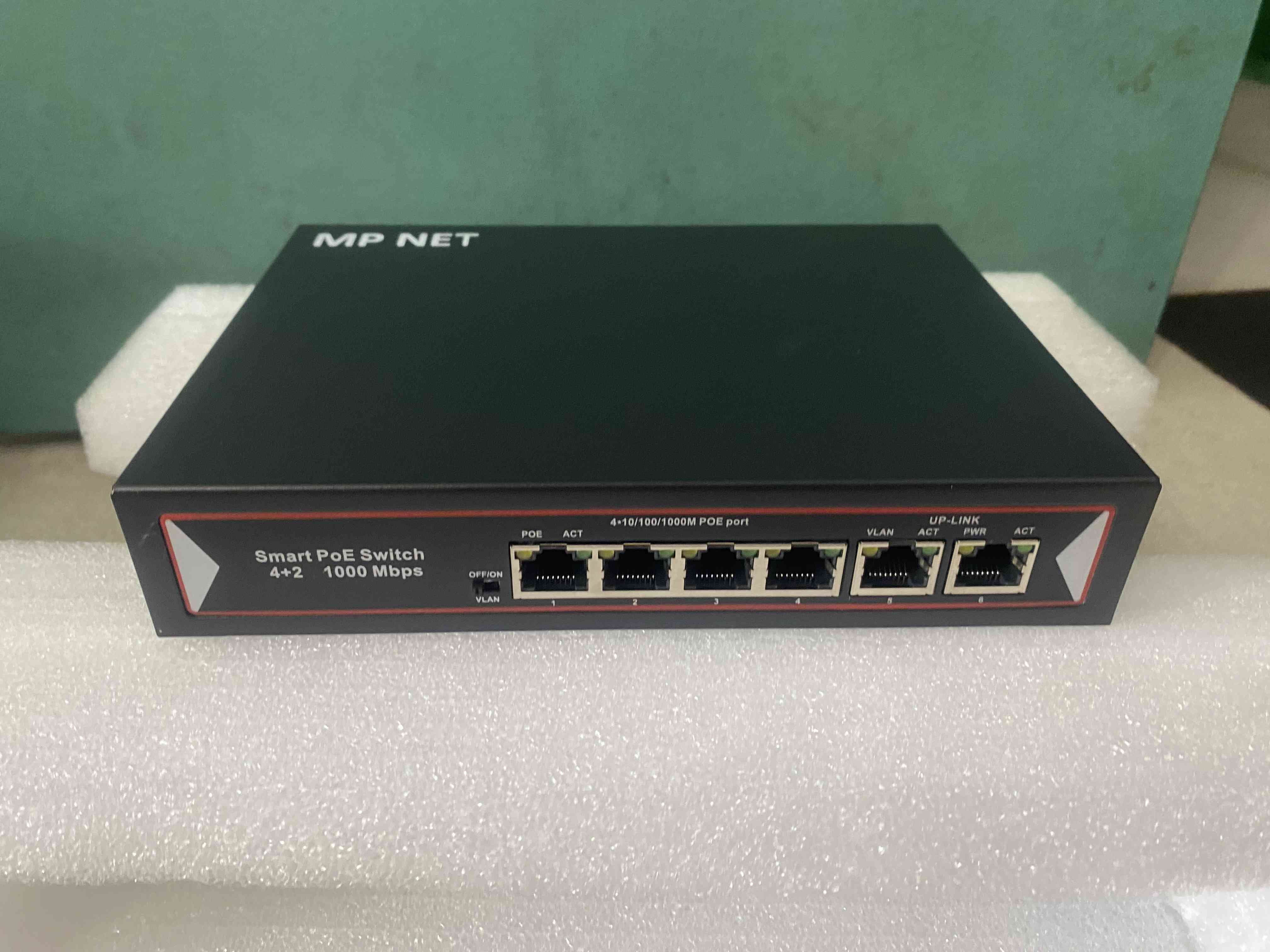

Thiết bị mạng switch  4 cổng POE 1000M +2 port Link 1000M, MP NET MP-POE-04G-2G60



EEE 802.3at Power over Ethernet (PoE) compliant Supports 10/100/1000Mbps fast Ethernet

4 x 1000M bit Auto-MDIX PoE ports

External power supply

Provides up to 15.4 watts for PoE

Automatically detects the PoE class level of a Powered Device 100M Backplane bandwidth

Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity Full wire-speed non-blocking reception and transmission Store-and-forward switching method

Back pressure Flow Control for Half-Duplex mode IEEE 802.3x Flow Control for Full-Duplex mode

Power saving technology powers down unused ports and when a connected device is in standby mode Plug and Play

Sturdy rack mountable metal case

Easy installation and use , no need to convert by software and network protocol

Specifications:

Network port 10/100/1000Mbps automatically link RJ45 port with POE functions (8-port POE) 10/100M/1000Mbps automatically link RJ45 port (port 9/10)
Transmission speed 1000Mbps receiving and sending, 10/100/1000Mbps receiving or sending network port: 10BASE-T or 100/1000BASE-TX RJ-45 port of Ethernet
performance specification Bandwidth:2.6Gbps(no block) Network delay(10/100/1000Mbps): maximum20 microsecond(using 64Byte packet )buffer area internal storage: 96KBAddress database:1024 MAC addressesFrame filtering rate:10M port maximum 14,800 frame/s 100 M port maximum 148,800 frame/s
IP and compatible standard IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow ControlIEEE 802.3af Power over Ethernet
LEDs guiding lights System: electric source,POE maximum power Speed for each port, link, POE activity, POE fault
Electric source support Maximum POE power:96W(all POE ports, port 1- port 8) maximum 15.4w for each portMaximum electric source power: 96W,48v@2A DC electric source output(every country uses the customized attaching plug)
Environment specifications Working temperature:-20℃~70℃Working dampness:10% 90%, No condensation
electromagnetic compatibility CEN Class BFCC Part 15, Class BVCCI Class BC-Tick
Safety specifications CE/LVD
