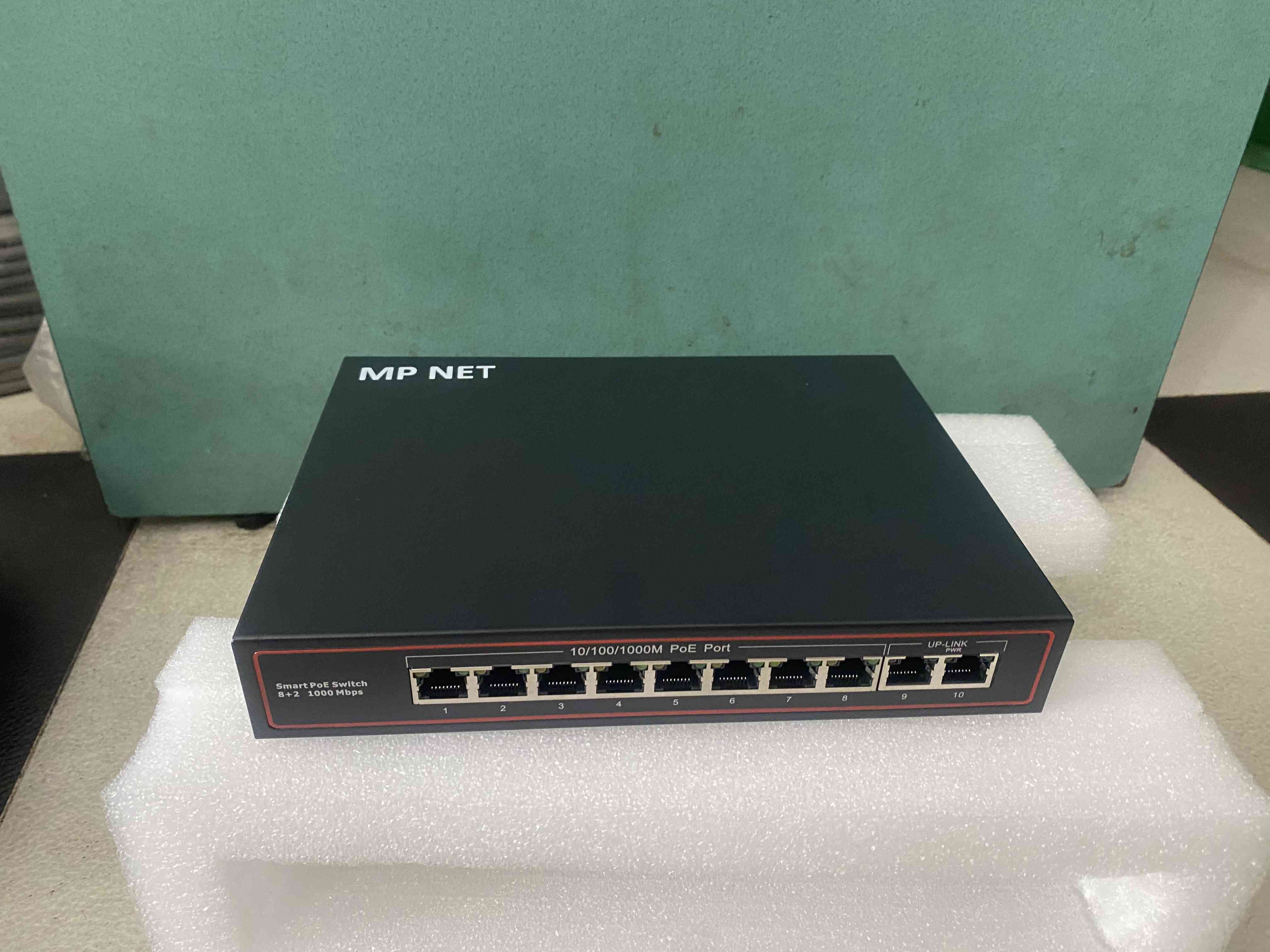

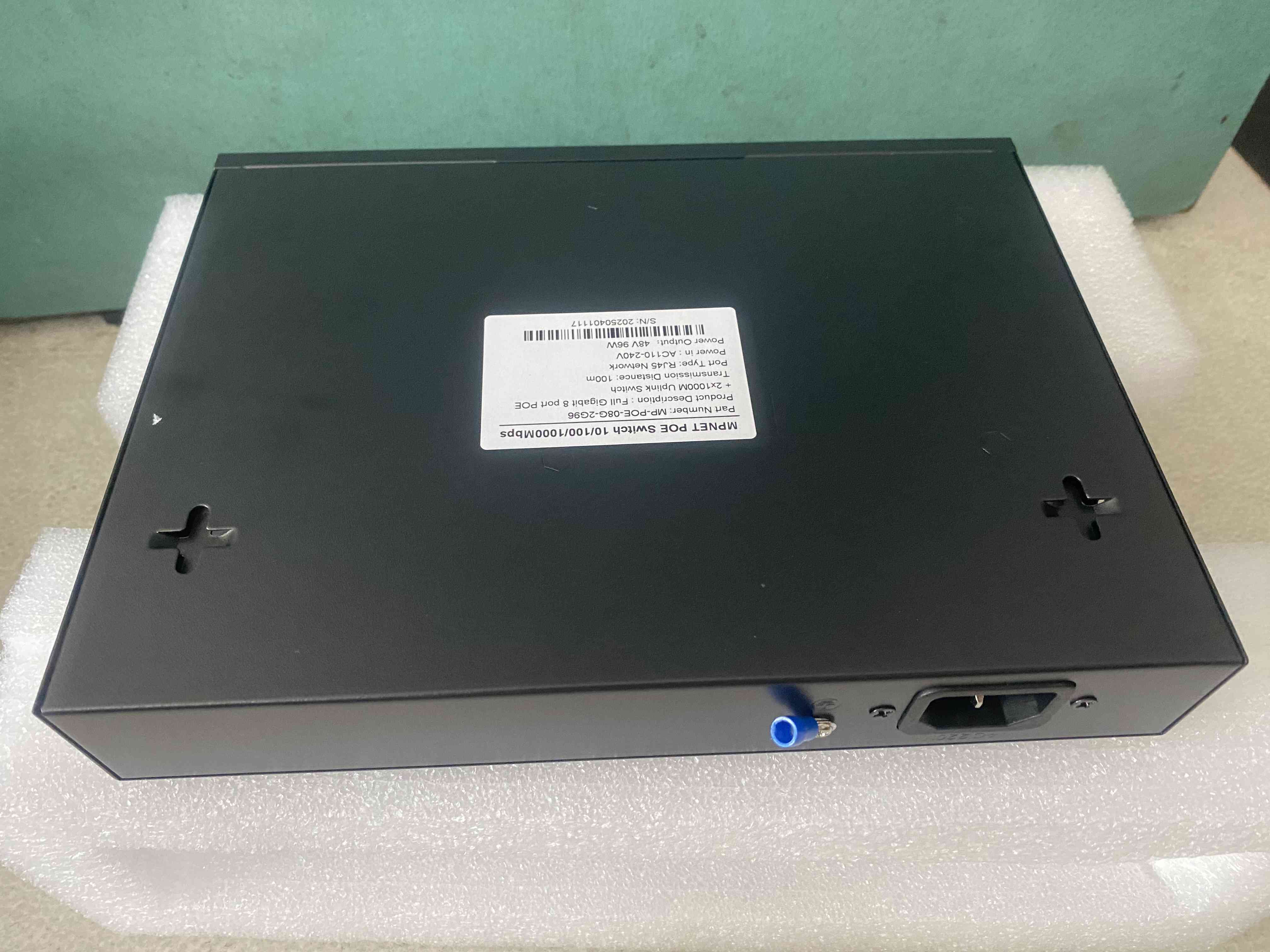

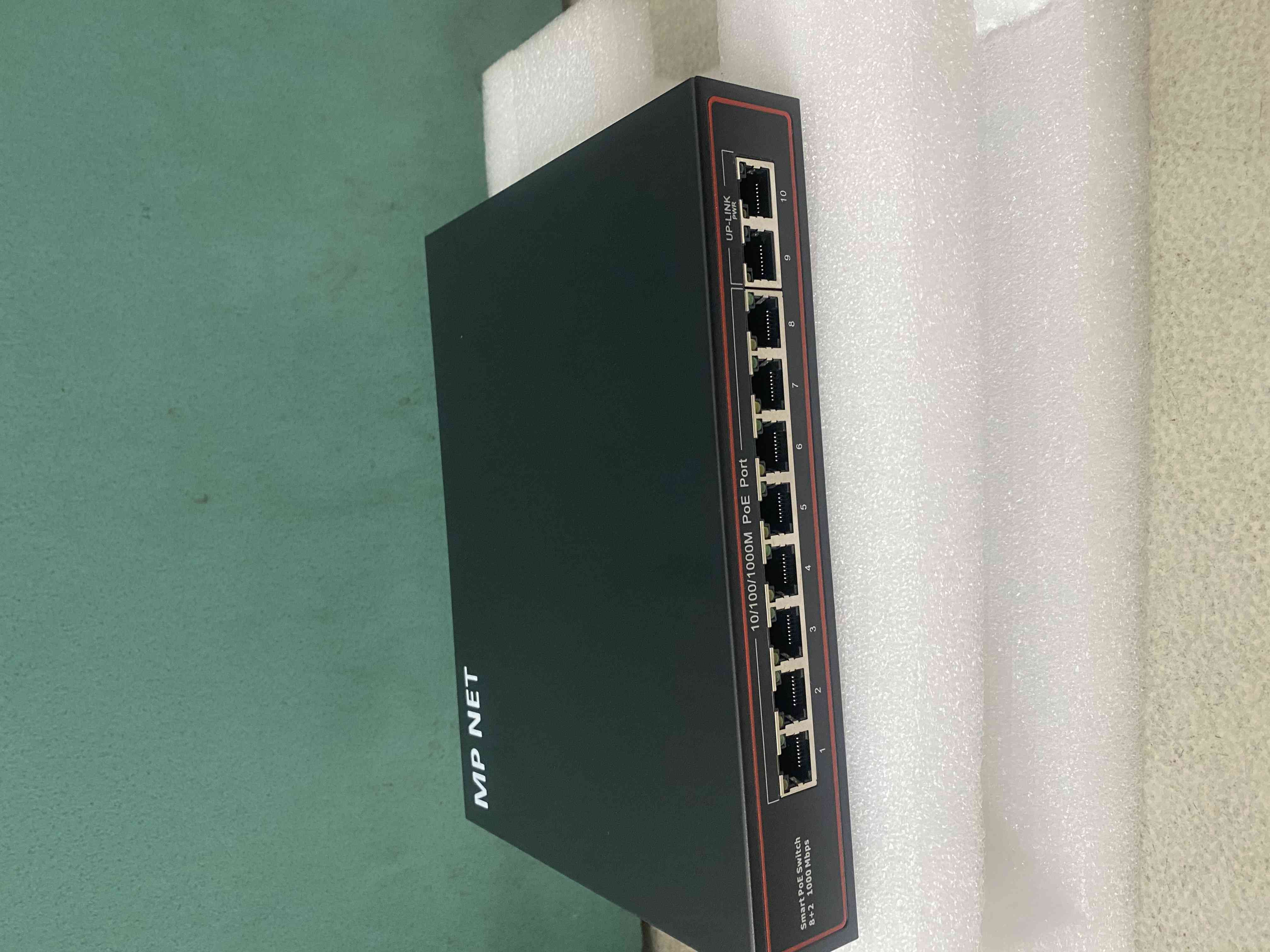

Thiết bị mạng switch 8 cổng POE 1000M +2 port Link 1000M, MP NET MP-POE-08G-2G96
EEE 802.3at Power over Ethernet (PoE) compliant Supports 10/100/1000Mbps fast Ethernet
8 x 1000M bit Auto-MDIX PoE ports
External power supply
Provides up to 15.4 watts for PoE
Automatically detects the PoE class level of a Powered Device 100M Backplane bandwidth
Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity Full wire-speed non-blocking reception and transmission Store-and-forward switching method
Back pressure Flow Control for Half-Duplex mode IEEE 802.3x Flow Control for Full-Duplex mode
Power saving technology powers down unused ports and when a connected device is in standby mode Plug and Play
Sturdy rack mountable metal case
Easy installation and use , no need to convert by software and network protocol
Specifications:
| Network port | 10/100/1000Mbps automatically link RJ45 port with POE functions (8-port POE) 10/100M/1000Mbps automatically link RJ45 port (port 9/10) |
| Transmission speed | 1000Mbps receiving and sending, 10/100/1000Mbps receiving or sending network port: 10BASE-T or 100/1000BASE-TX RJ-45 port of Ethernet |
| performance specification | Bandwidth:2.6Gbps(no block) Network delay(10/100/1000Mbps): maximum20 microsecond(using 64Byte packet )buffer area internal storage: 96KBAddress database:1024 MAC addressesFrame filtering rate:10M port maximum 14,800 frame/s 100 M port maximum 148,800 frame/s |
| IP and compatible standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow ControlIEEE 802.3af Power over Ethernet |
| LEDs guiding lights | System: electric source,POE maximum power Speed for each port, link, POE activity, POE fault |
| Electric source support | Maximum POE power:96W(all POE ports, port 1- port 8) maximum 15.4w for each portMaximum electric source power: 96W,48v@2A DC electric source output(every country uses the customized attaching plug) |
| Environment specifications | Working temperature:-20℃~70℃Working dampness:10% 90%, No condensation |
| electromagnetic compatibility | CEN Class BFCC Part 15, Class BVCCI Class BC-Tick |
| Safety specifications | CE/LVD |
