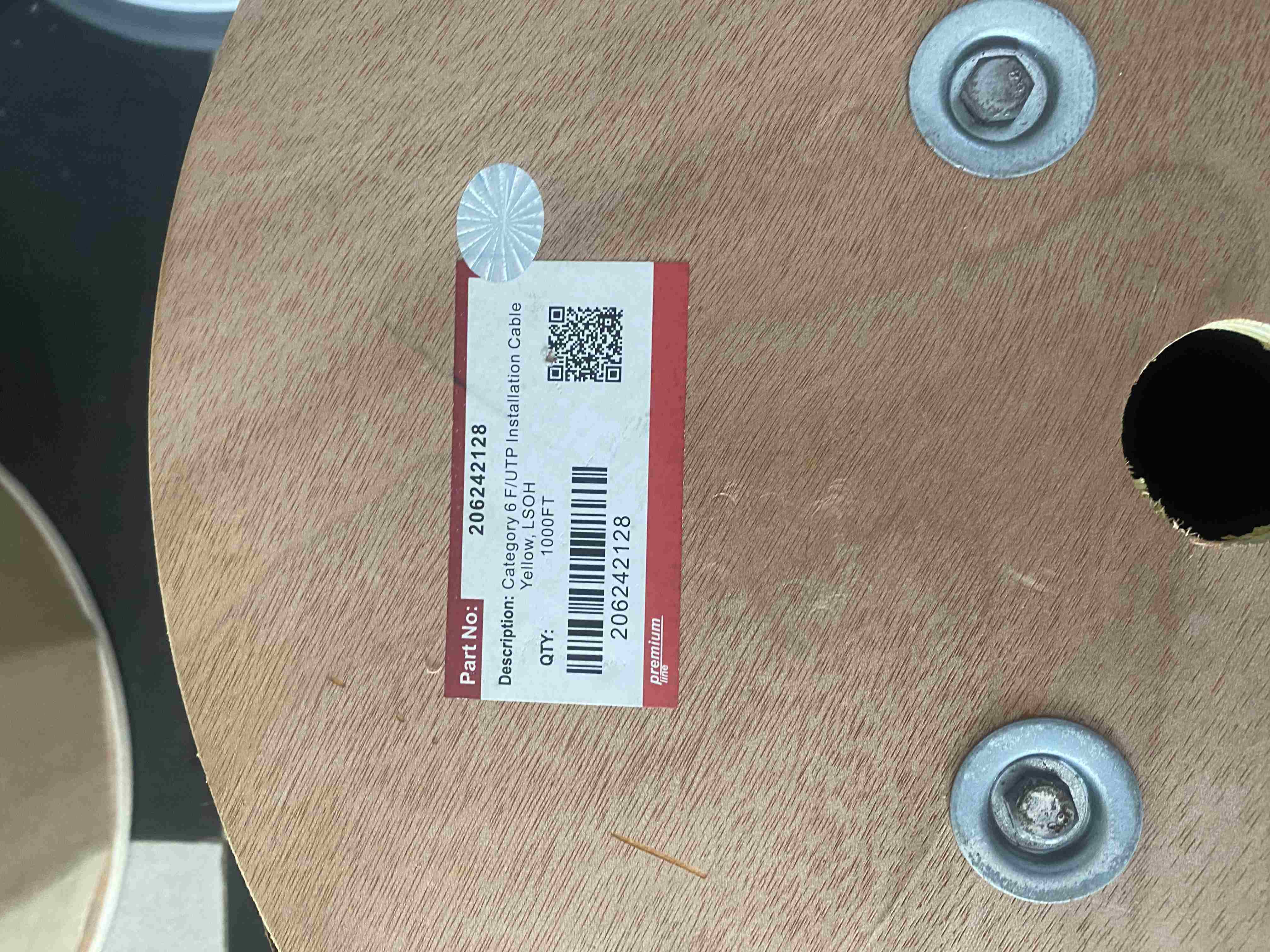

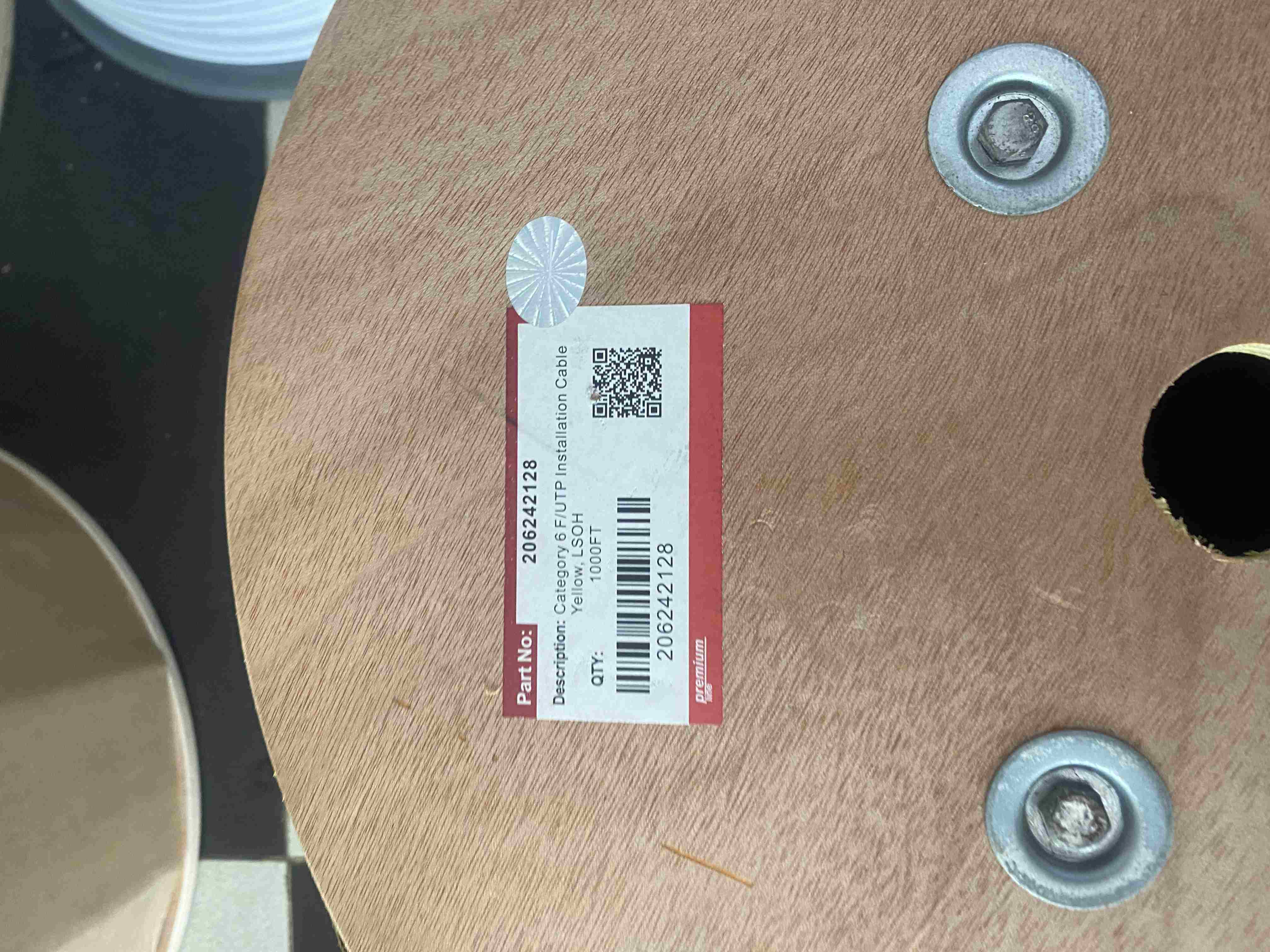

Conductor

Material

Bare Copper / 23AWG

Insulation

Material

HDPE

Diameter

1.10±0.10 mm

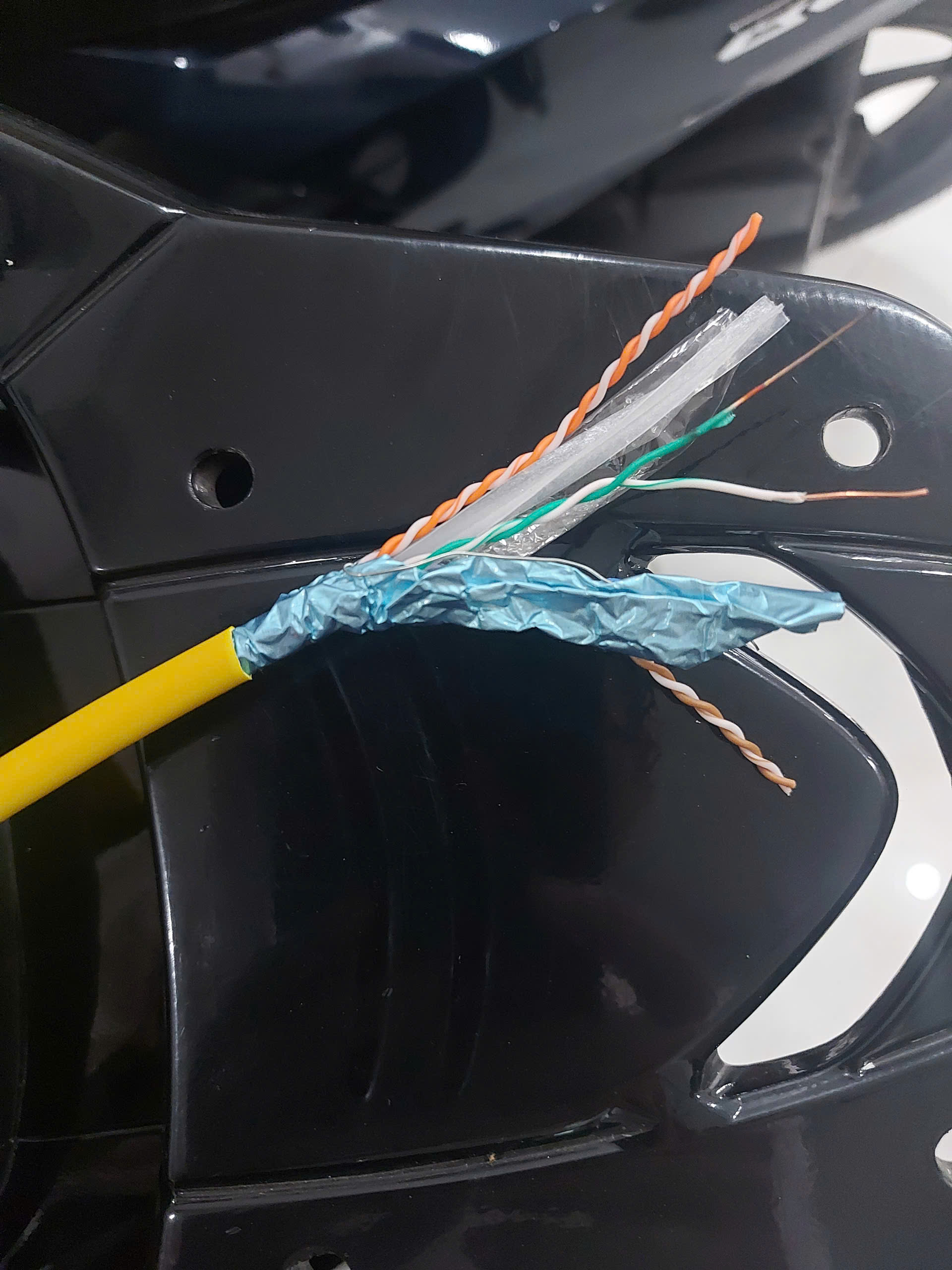

Inner-Shield

Aluminum-Mylar

Al-Mylar tape insulation on outside surface

" 十" cross

Material

PE

Drain Wire

Material/Size

Stranded Tinned Copper / 26AWG

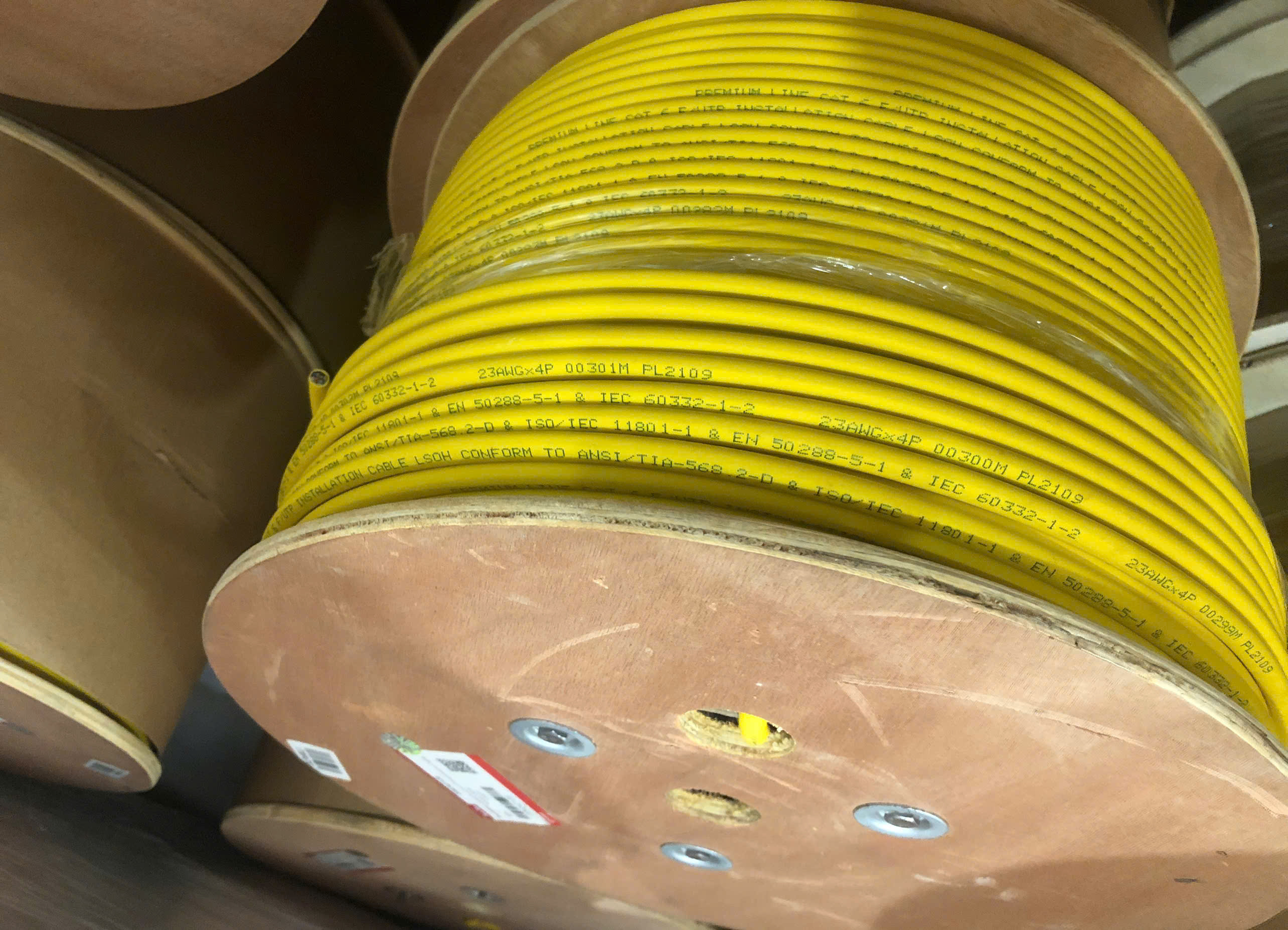

Sheath

Material

PVC or LS0H

Diameter

7.4 ± 0.4 mm

Operation Temperature

-20°C~+60°C

Installation Temperature

0°C~+50°C

Storage Temperature

-30°C~+60°C

Dielectric Strength of Insulation

1200 V dc or 850 V ac / 2 seconds

Insulation Resistance Test

Min. 5000 MΩ/m

Conductor Resistance

Max.9.38 Ω/100m at 20℃

Resistance Unbalance

Max. 2%

Capacitance Unbalance

Max. 160 pF/100m

Mutual Capacitance

Max. 5600 pF/100m

Impedance

1~100MHz

100Ω ± 15%

100~250MHz

100Ω ± 22%

Attenuation &  Near End Cross  Talk

Frequency

Max. Attenuation

NEXT

PSNEXT

(MHz)

(dB/100 meters)

(dB), Min.

(dB), Min.

1MHz

2.0*

74.3*

72.3*

4MHz

3.8*

65.3*

63.3*

10MHz

6.0*

59.3*

57.3*

16MHz

7.6*

56.2*

54.2*

20MHz

8.5*

54.8*

52.8*

31.25MHz

10.7*

51.9*

49.9*

62.5MHz

15.4*

47.4*

45.4*

100MHz

19.8*

44.3*

42.3*

200MHz

29.0*

39.8*

37.8*

250MHz

32.8*

38.3*

36.3*

The asterisked (*) value are for information only. The minimum Next coupling loss for any pair  combination at room temperature is to be greater than the value determined using the formula:  NEXT(f MHZ)≧NEXT(0.772)-15LOG10(f MHZ/0.772)dB
