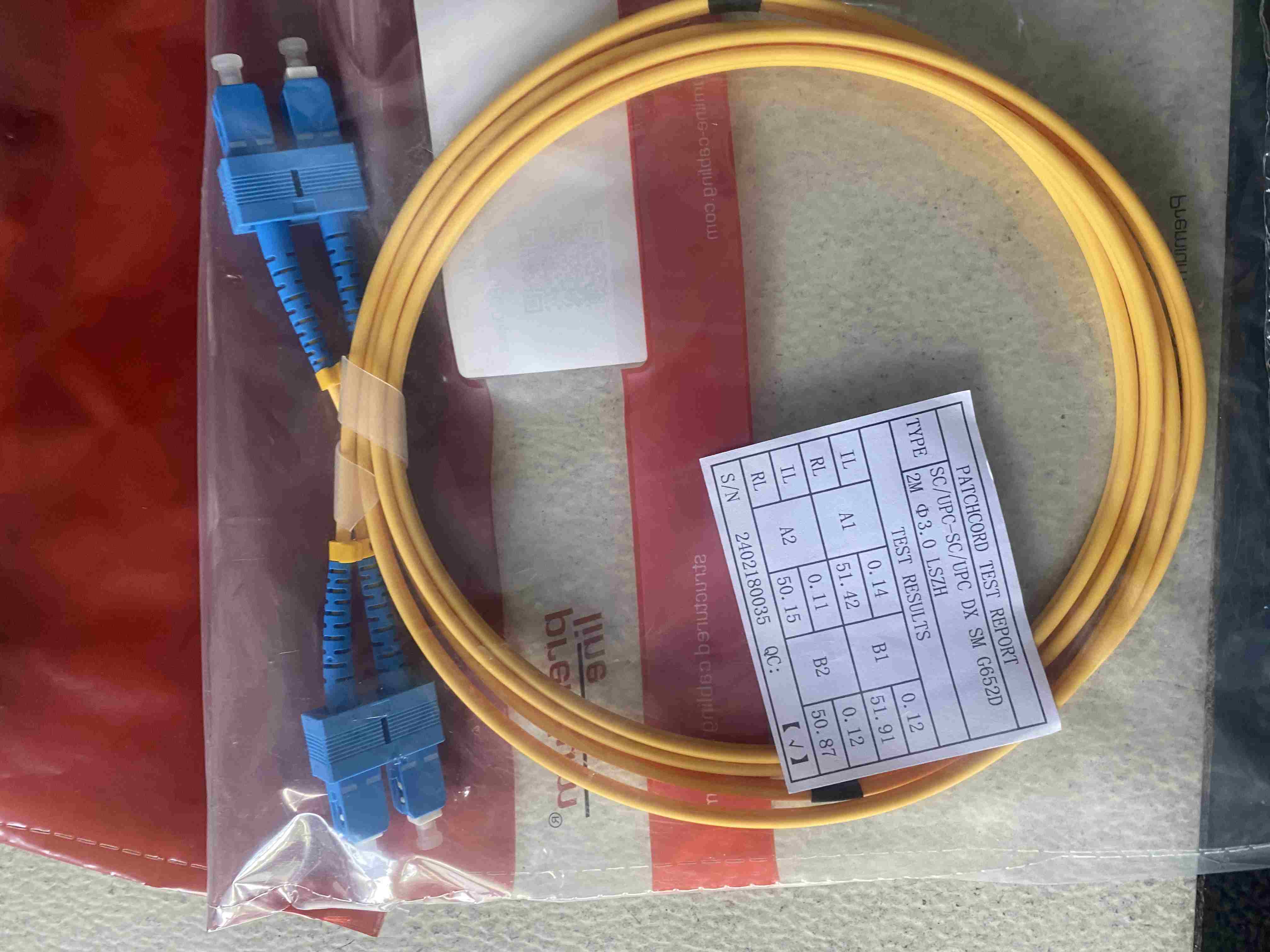

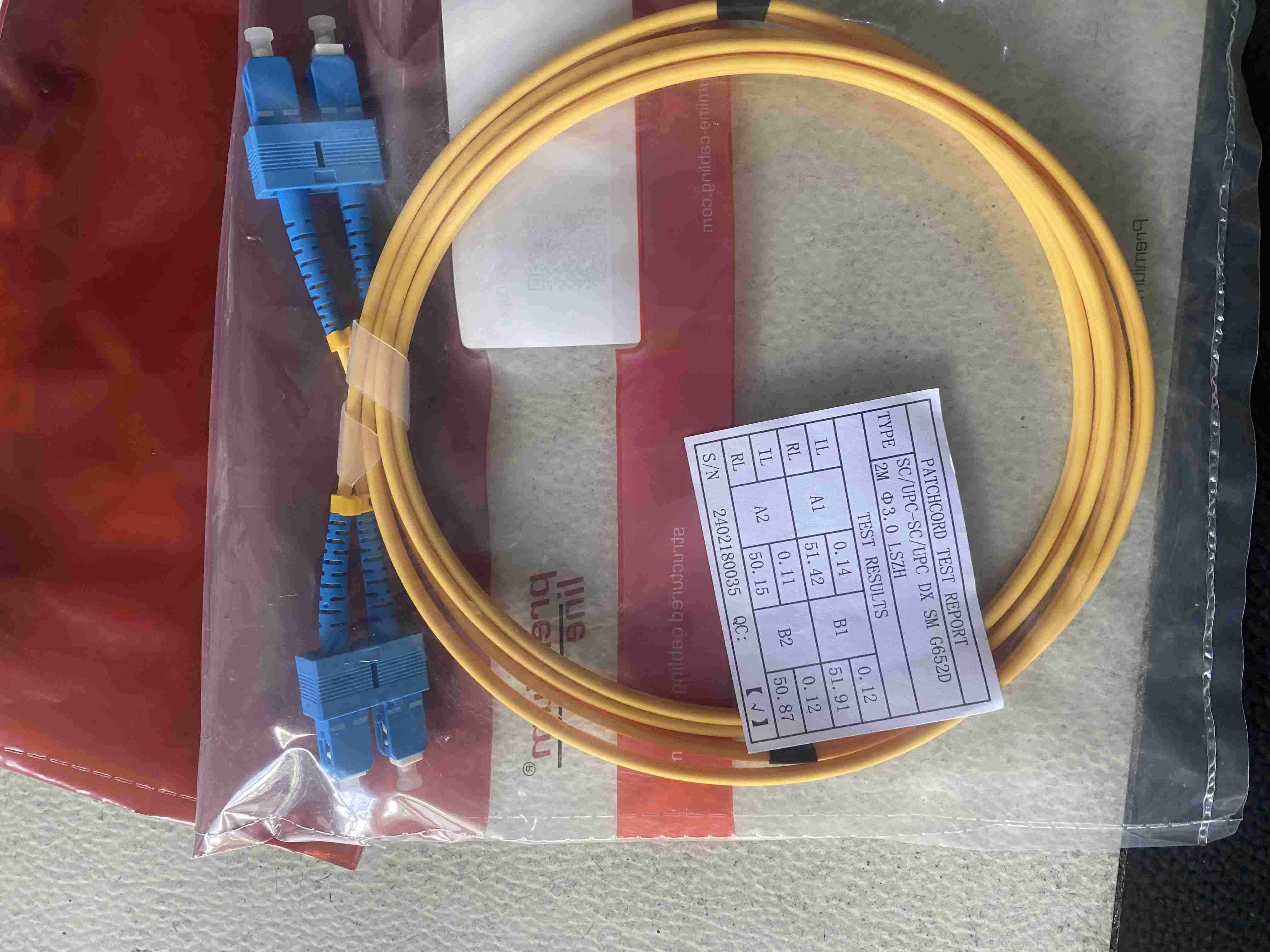

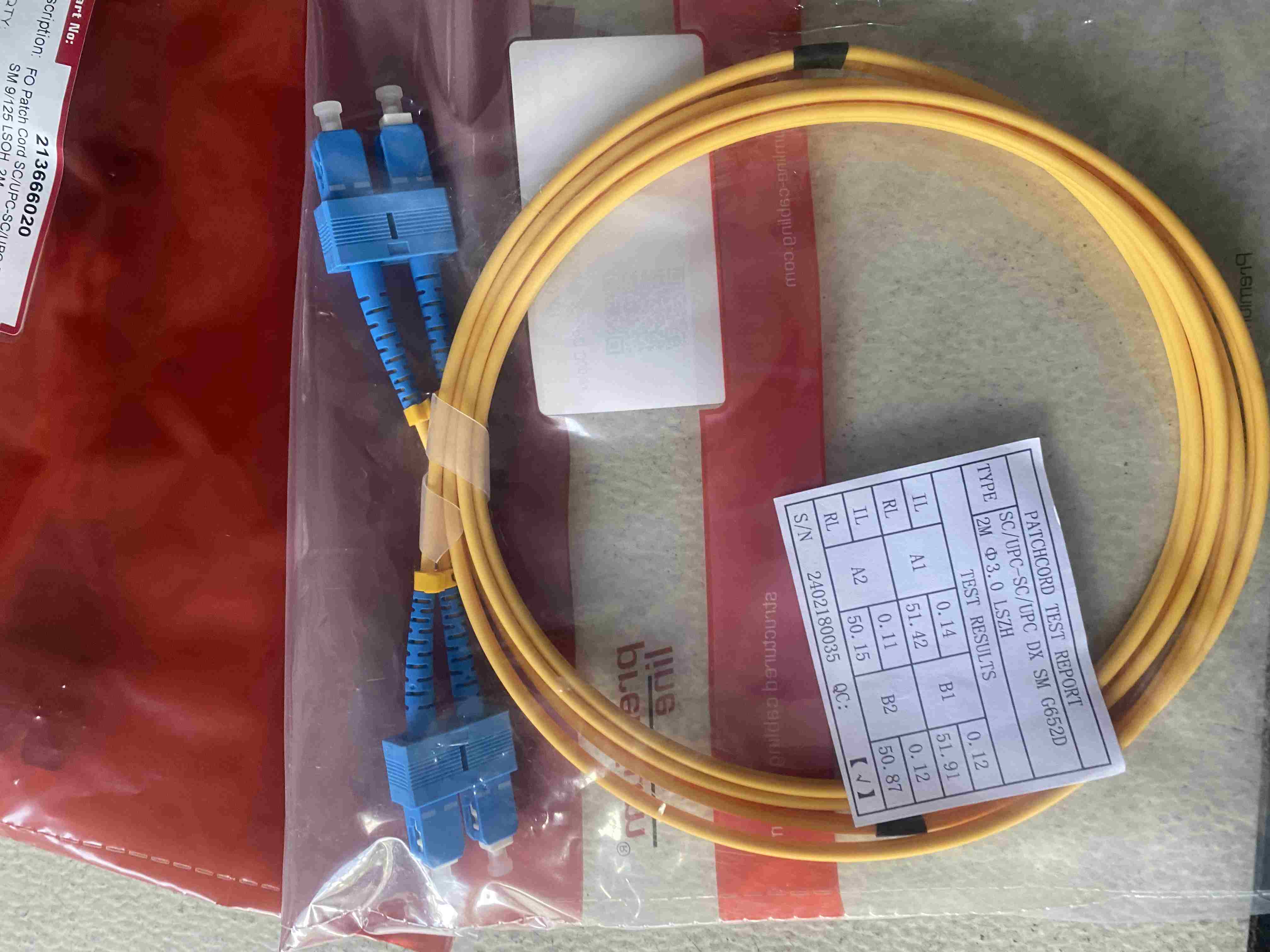

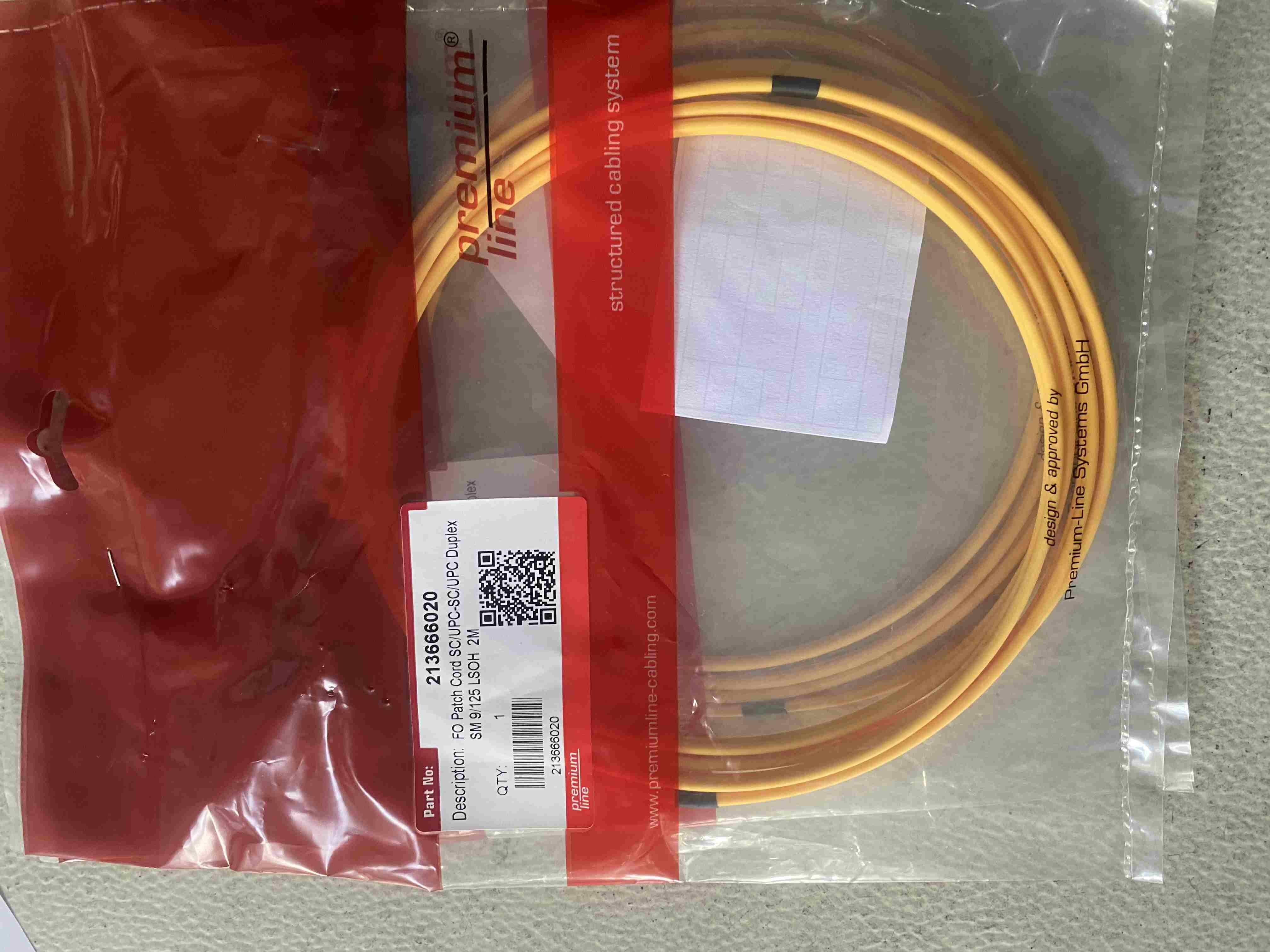

Dây nhảy quang SC/SC ,Chuẩn UPC, đơn mốt 9/125, Đường kính 3.0mm, dạng dây đôi, LSOH, 2m (Premium-Line) P/n 213666020
iber optic patch cords are suited for equipment jumper cable, cross connects, and work area connections. All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-2, ISO 11801:2002 and EN 50173-1 standards. With complete connector range of SC, ST, LC, FC, MTRJ, and also the different mode of fiber cables, consists of various combination for all-field applications.
FEATURES:
- meets TIA/EIA 568-B.3 standard
- fiber meets ITU G652D & G655 and IEC60793-2
- connectors meet IEC60874 and IEC 61754
- environmental and mechanical tests based on IEC 61300-2-1,2,4,5,6,17, IEC61300-3-1,4,11, IEC 60332, IEC60754-1,2
- RoHS compliant
APPLICATIONS:
- Telecom network
- CATV
- FTTx
- End equipment
- Local Area Network
- Test equipment
Fiber Characteristics
| Geometrical Characteristics | ||
| Mode field diameter at 1310nm | 9±2.5um | |
| Cladding diameter | 125±0.7um | |
| Core/Cladding Concentricity Error | ≤ 0.5um | |
| Cladding Non-Circularity | ≤ 1% | |
| Coating Diameter (uncolored) | 243±7um | |
| Core/Cladding Concentricity Error | ≤ 8um | |
| Mechanical Characteristics | ||
| Proof test level | ≥ 1% | |
| Fiber Strength | 10m, weibull lowest probability level: 2.76Gpa (15%) | |
| Dynamic Corrosion parameter | ≥ 20nd | |
| Curl Radius | ≥ 4m | |
| Strip force | Average Value | 1~5N |
| Peak Value | 1.3~8.9N | |
| Operational Characteristics | ||
| Temperature (-60℃ ~ +85℃) | Additional attenuation ≤ 0.05dB/km is allowed at wavelength 1310nm and 1550nm | |
| Immersing test (23±2℃,30days) | ||
| Humidity and heat test condition
(85℃±2℃, above 85%rh, 30days ) |
||
| Heating aging test (85℃±2℃, 30days) | ||
Connector Mechanical Characteristics & Cord Performance
| Type | FC | ST | SC | LC | MTRJ | |
| Connector Ferrule diameter | 2.5mm | 2.5mm | 2.5mm | 1.25mm | 2.45×2.2mm | |
| IL | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| RL | PC | ≥40dB | ≥40dB | ≥40dB | ≥40dB | ≥40dB |
| UPC | ≥50dB | ≥50dB | ≥50dB | ≥50dB | ≥50dB | |
| APC | ≥60dB | ≥60dB | ≥60dB | ≥60dB | ≥60dB | |
| Working temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C | |
| Repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB | ≤0.1dB | ≤0.1dB | |
Patch cord Characteristics
| Mechanical test | Additional loss |
| Mating durability: min.1000times | ≤0.1dB |
| Cable retention:100N, 120s | ≤0.2dB |
| Strength of coupling mechanism: 40N, 120s | ≤0.1dB |
| Drop test: 1.5m, 5times | ≤0.2dB |
| Vibration: 10-500Hz,1.5mm amplitude | ≤0.1dB |
| Temperature test | Additional loss |
| Cold environment storage: -40℃, 96h | ≤0.2dB |
| High temperature storage: +85℃, 96h | ≤0.2dB |
| Temperature change: -40℃~+85℃, 20cycles | ≤0.2dB |
| Damp heat: +25℃~+65℃, 93%RH,100h | ≤0.2dB |
ORDERING INFORMATION:
Description: Premium Line single mode 9/125um fiber optic patch cord
Part No:
| FO SM
patch cord |
Cable Type | Connector Type | Length (m) | |
| A end | B end | |||
| 213: UPC
215: APC; APC/UPC |
1: simplex, PVC, 3.0mm
2: simplex, LSOH, 3.0mm 3: simplex, PVC, 2.0mm 4: simplex, LSOH, 2.0mm 5: duplex, PVC, 3.0mm 6: duplex, LSOH, 3.0mm 7: duplex, PVC, 2.0mm 8: duplex, LSOH, 2.0mm |
1: SC/APC
2: ST/APC 3: FC/APC 4: LC/APC 5: MTRJ 6: SC/UPC 7: ST/UPC 8: FC/UPC 9: LC/UPC |
1: SC/APC
2: ST/APC 3: FC/APC 4: LC/APC 5: MTRJ 6: SC/UPC 7: ST/UPC 8: FC/UPC 9: LC/UPC |
010: 1.0m
020: 2.0m 030: 3.0m 050: 5.0m 070: 7.0m 100: 10.0m 900: 90.0m |
CÔNG TY TNHH GIẢI PHÁP CÔNG NGHỆ MINH PHƯỚC
Mã số thuế : 0313120792
Địa chỉ: 11/31 Nguyễn Thái Sơn , Phường 3, Quận Gò Vấp, Thành phố Hồ Chí Minh
Email: tmphuocvn@gmail.com
Hotline: 0916 000 339 - 0919955991
Website: www.kinhodanhduan.com.vn
