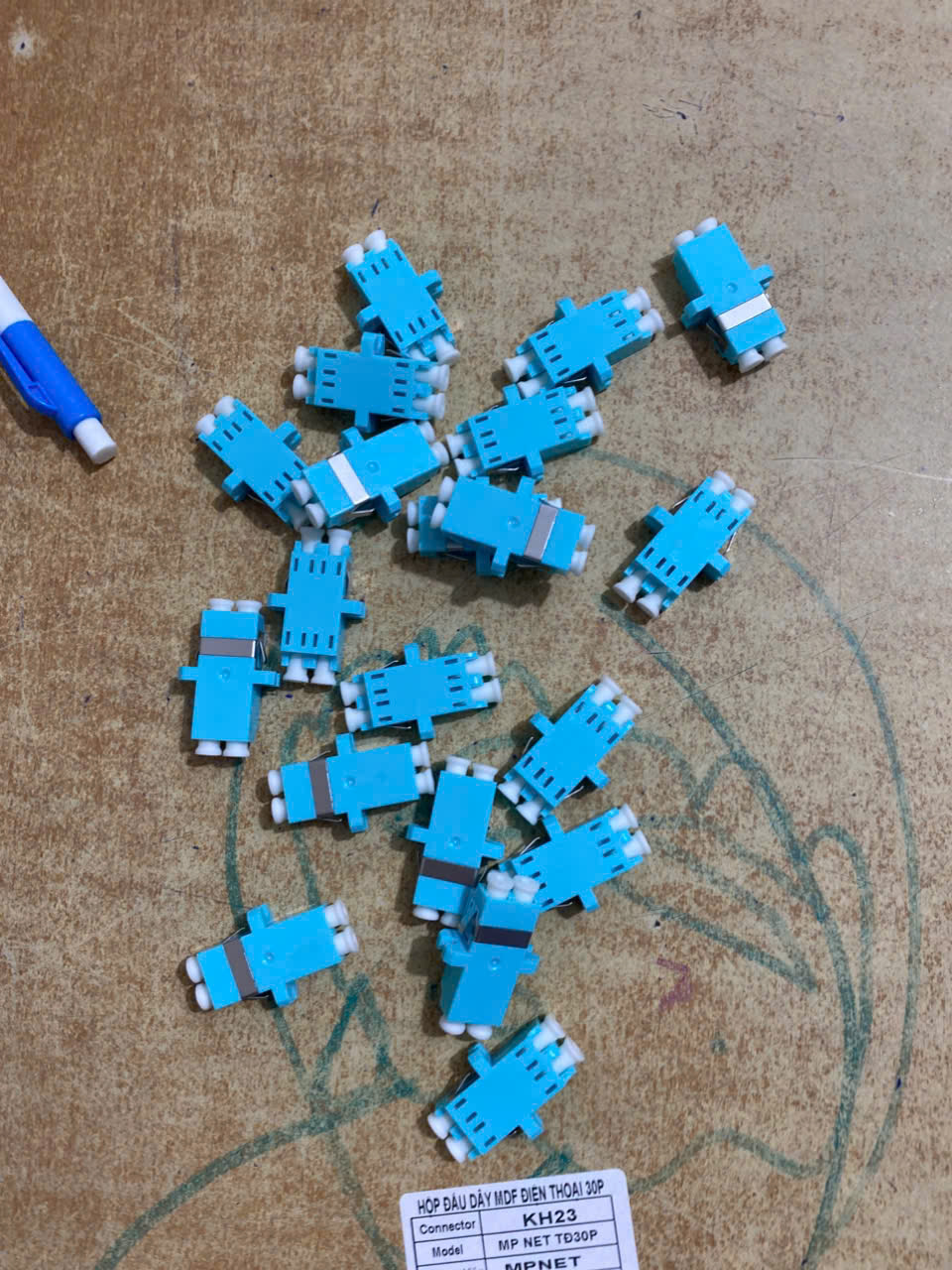

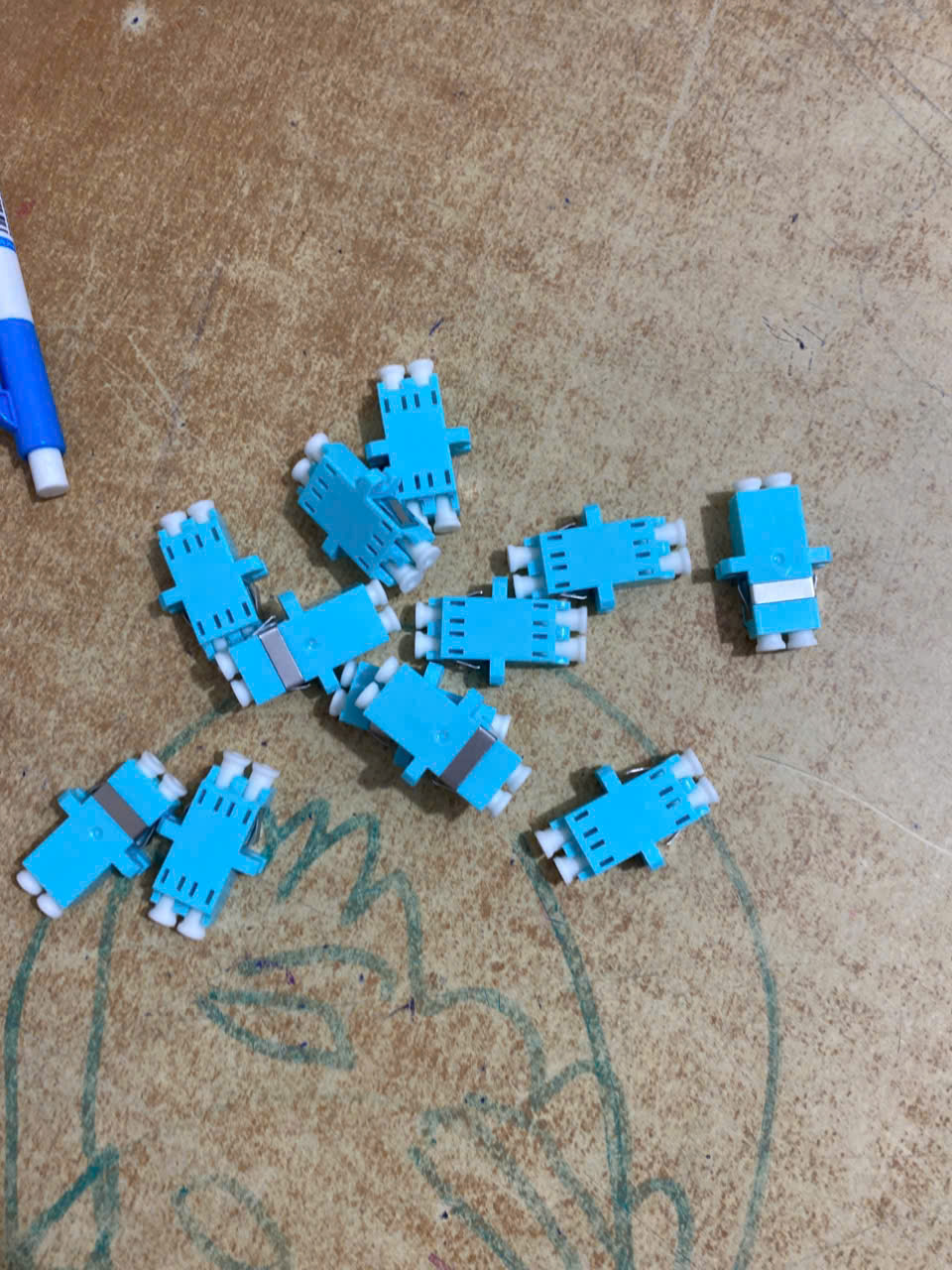

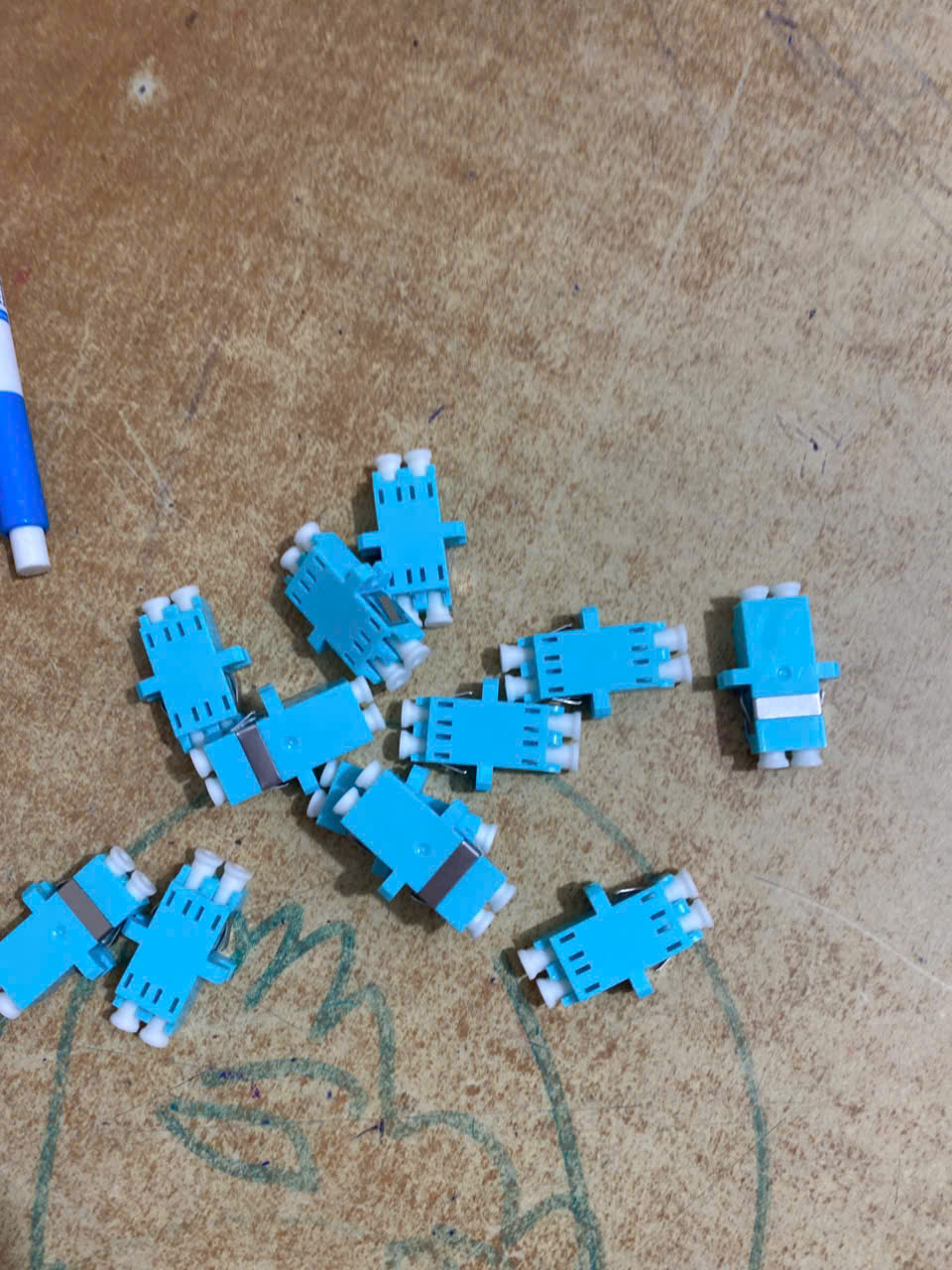

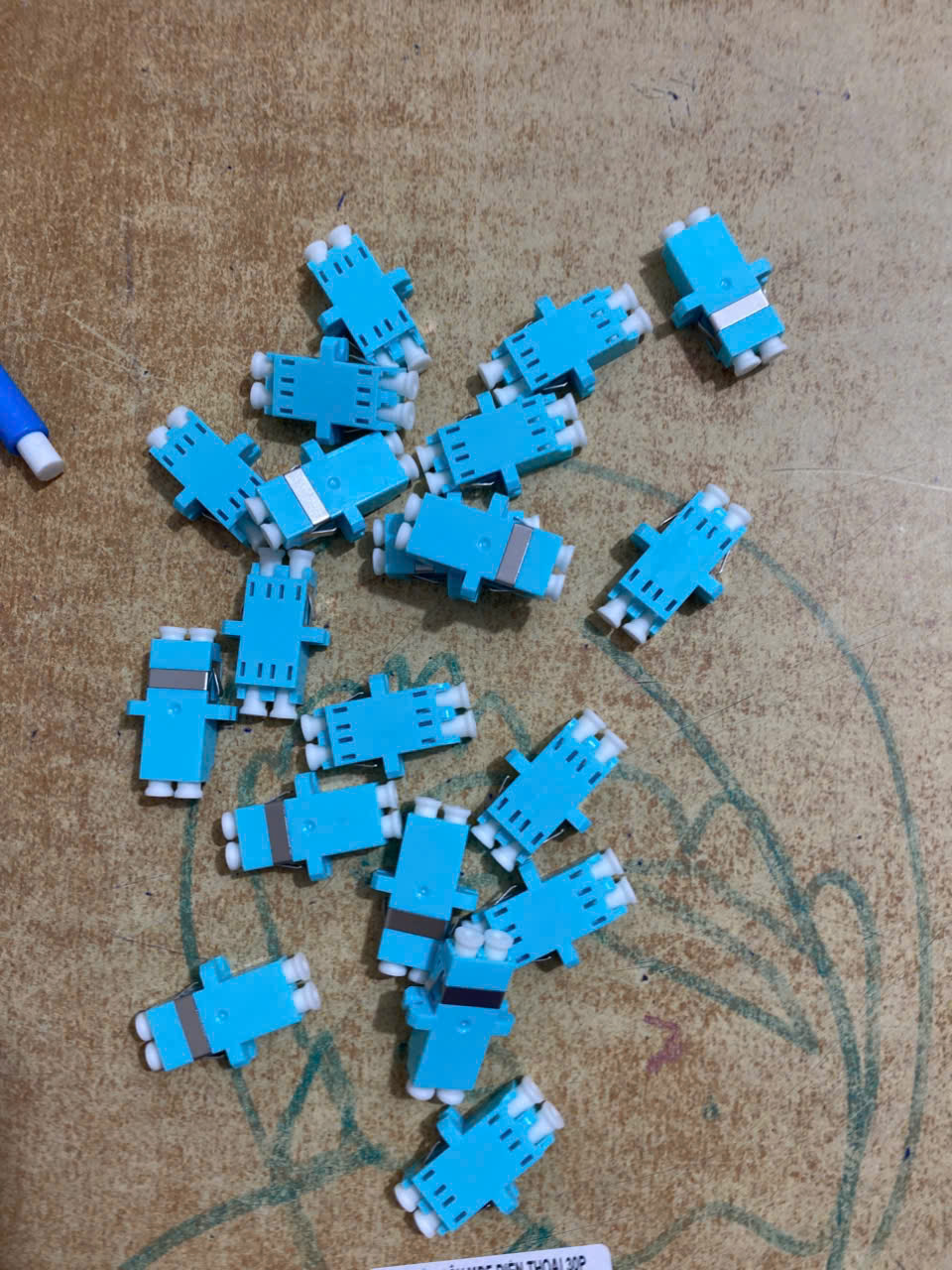

EH1457-002: Khớp nối quang đôi đa mốt, LC
Product Classification
Regional Availability Asia | EMEA | Latin America | North America
Product Type Fiber adapter
General Specifications
Body Style Duplex
Color Aqua
Interface LC/UPC
Mounting Flange
Shuttered No
Total Ports, quantity 2
Transmission Standards IEC 60754-1 | IEC 61300-3-42
Dimensions
Width 15.4 mm | 0.606 in
Length 29.2 mm | 1.15 in
Material Specifications
Alignment Sleeve Material Zirconia
Optical Specifications
Fiber Mode Multimode
Insertion Loss, maximum 0.2 dB
Environmental Specifications
Installation temperature -40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating UL 94 V-0
